Product Description

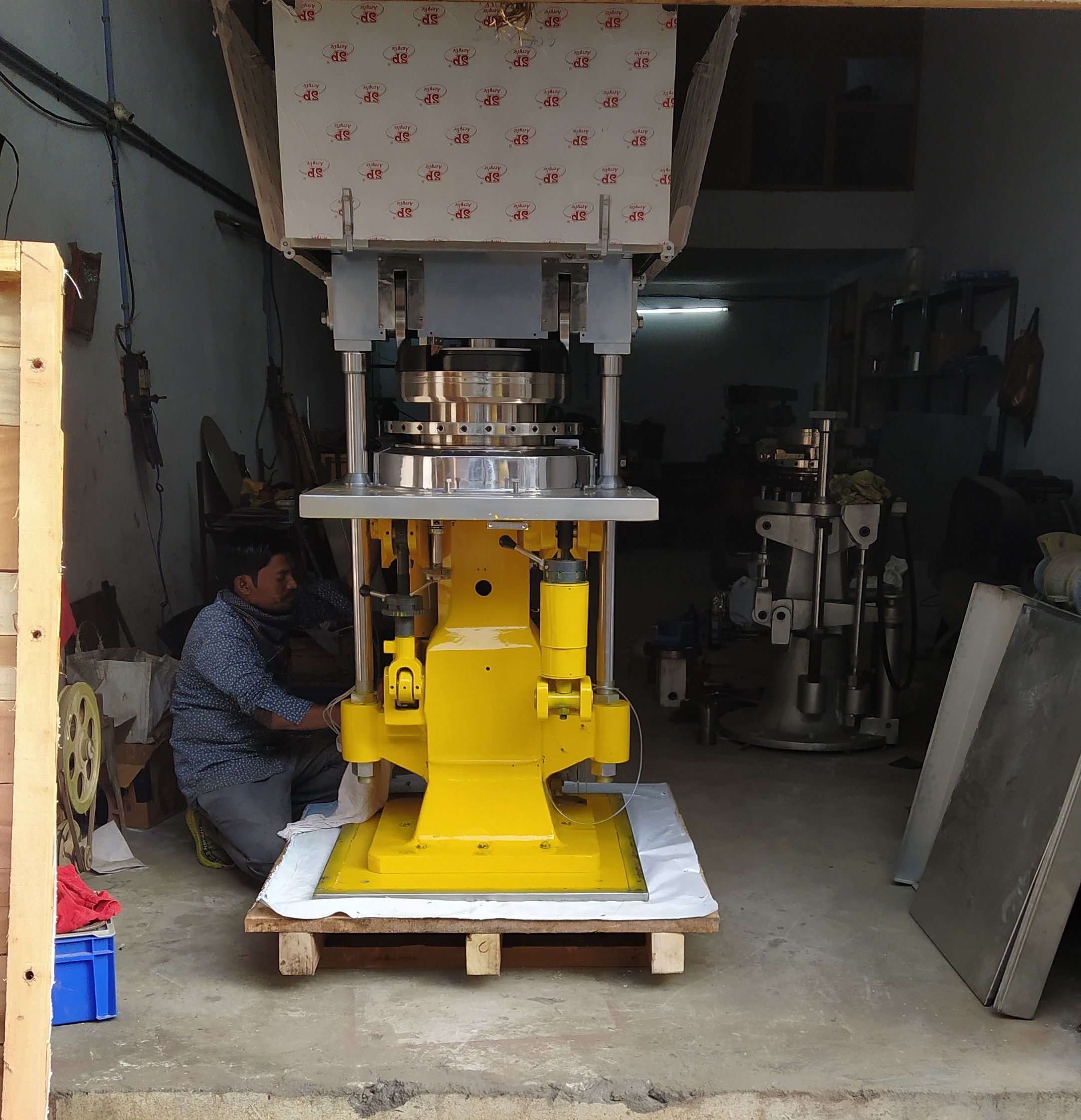

VENUS MACHINERY mfg this product .. Single sided Rotary Tablet Press suitable for medium size batch production. The VTCMD4 Tablet Press is designed in an effort to exceed the highest cGMP requirement with use of advance technology and to ensure the most economical and efficient tablet production. The VTCMD4 Tablet Press features a unique ergonomic design. It is easy to operate, clean and maintain.
TECHNICALSPECIFICATION
Model
|
VPM-12
|
VPM-16
|
VPM-20
|
VPM-22
|
Tooling
|
Bolus / Slugging
|
"D"
|
"D"
|
D
|
No. of Station
|
12 STN
|
16 Stn.
|
20 Stn.
|
22 Stn.
|
Operating Pressure
|
15 Ton
|
10 Ton
|
10 Ton
|
10 Ton
|
Max. Tablet Diameter
|
42mm
|
24 mm
|
24 mm
|
24 mm
|
Max. Depth of Fill
|
30 mm
|
20 mm
|
20 mm
|
20 mm
|
Output - Tablets/Hr.
|
8,400 to 14,400
|
10,500 to 45,500
|
20,500 to 50,500
|
15,500 to 60,500
|
Upper Punch Penetration
|
1.5 to 4 mm
|
1.5 to 4 mm
|
1.5 to 4 mm
|
1.5 to 4 mm
|
Main Electric Motor
|
7.5 HP/960RPM/
415V/50HZ/3Ph
|
3HP/1440RPM/415V/50HZ/3Ph
|
|
